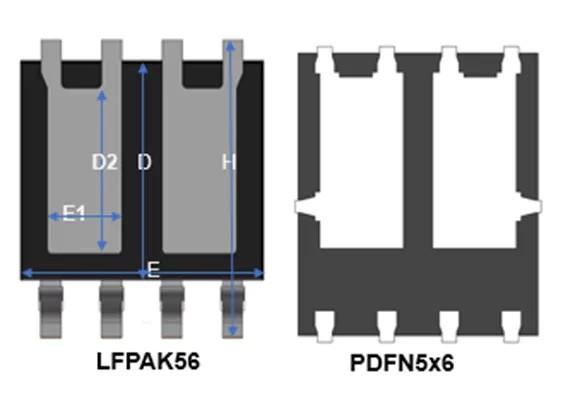

Package comparison
Single-choice LFPAK
Multi-choices PDFN5x6

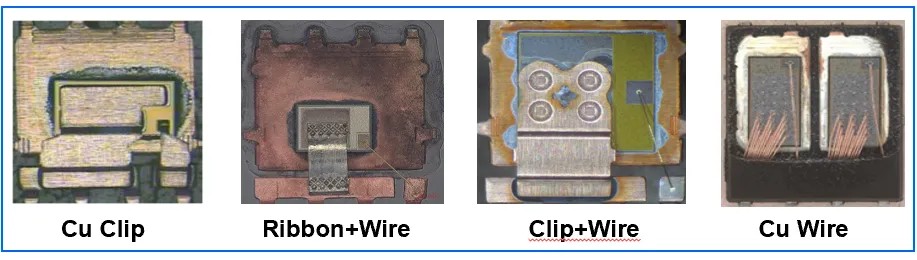

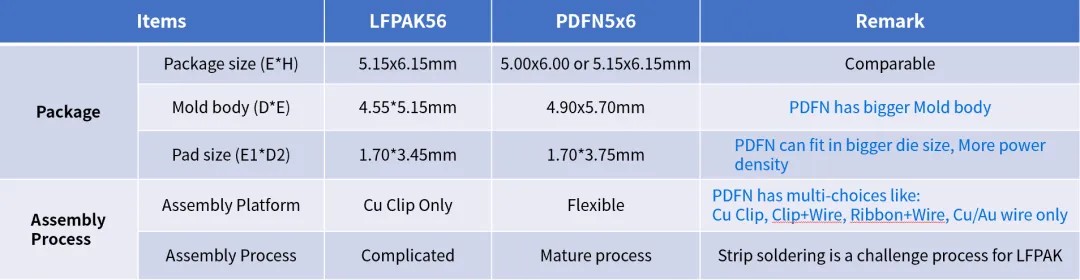

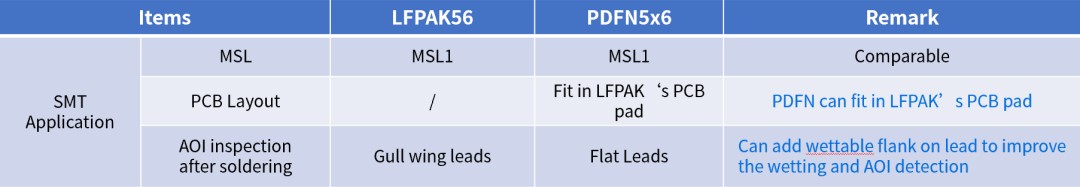

Package comparison

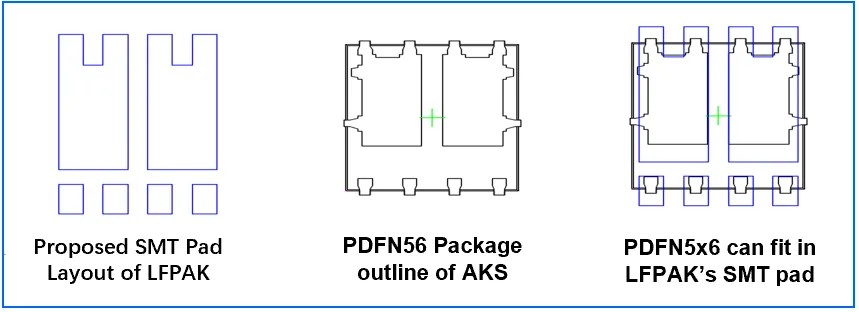

PCB Pad fitness check

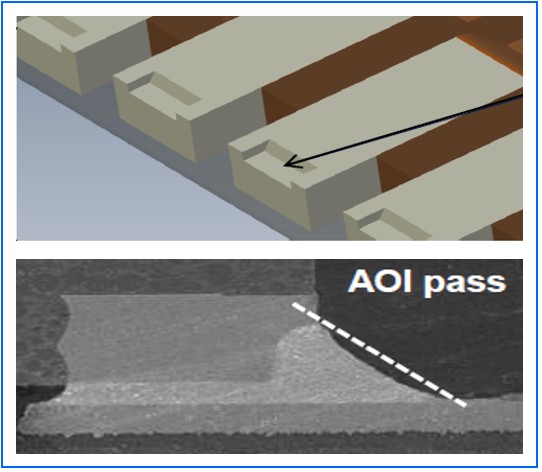

Wettable flank design on PDFN5x6

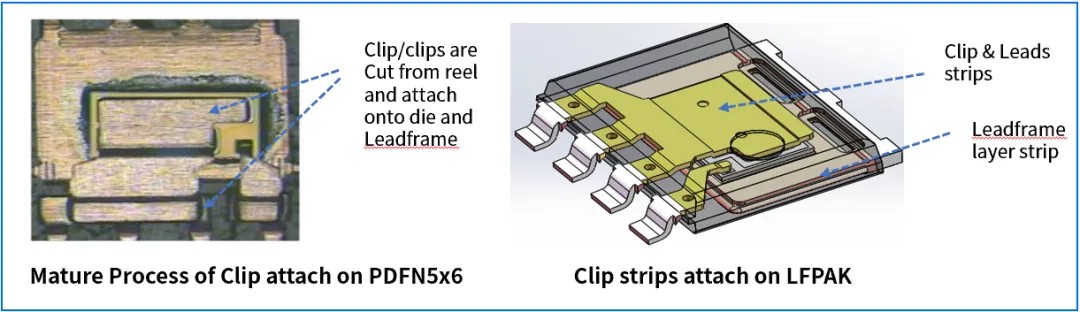

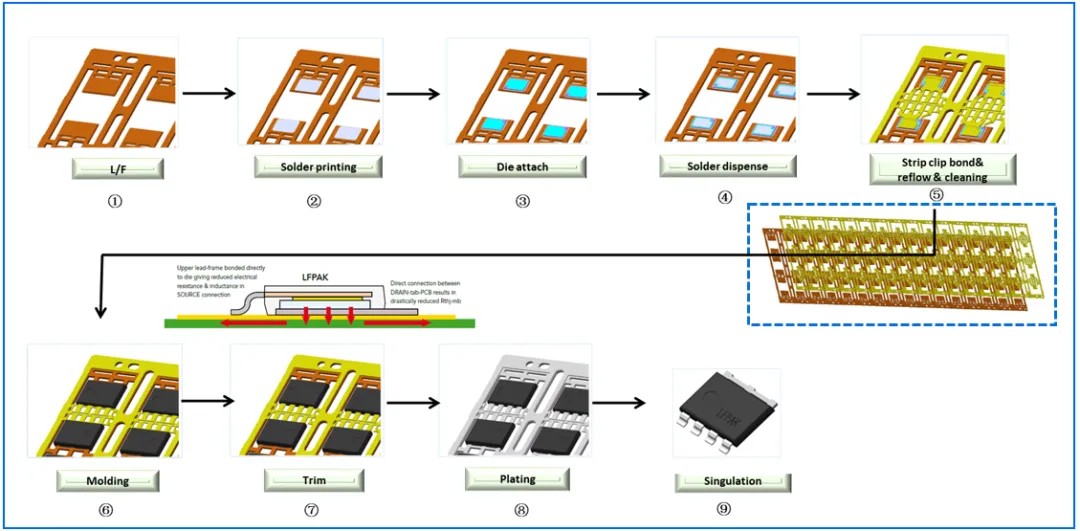

Package assembly process comparison

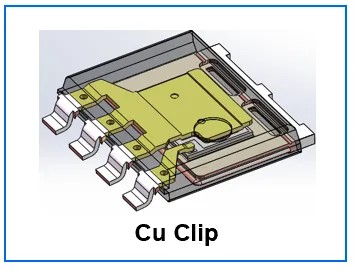

LFPAK Challenge process:
Potentially, Leadframe and/or clip strip warpage/CTE mismatch cause solder non-wetting between clips and dies.

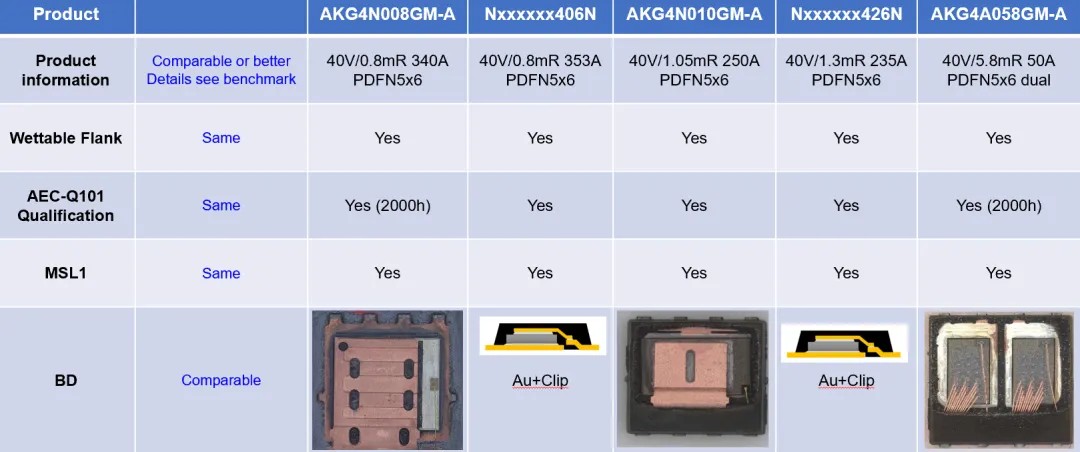

Basic Information Comparison (AKS vs Competitor)

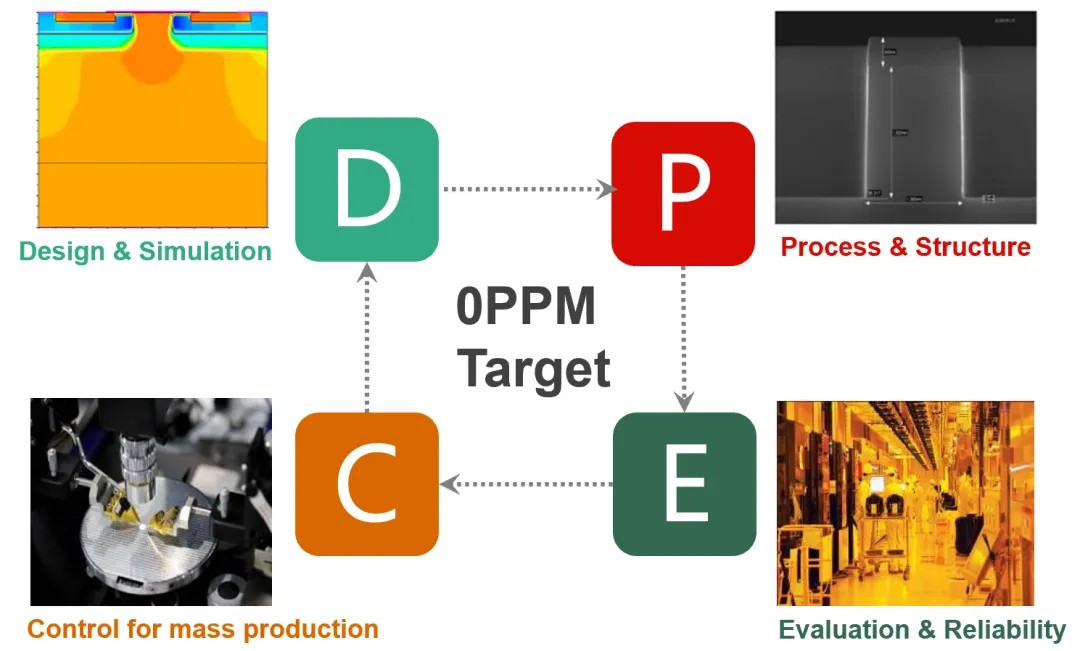

0PPM target & design control

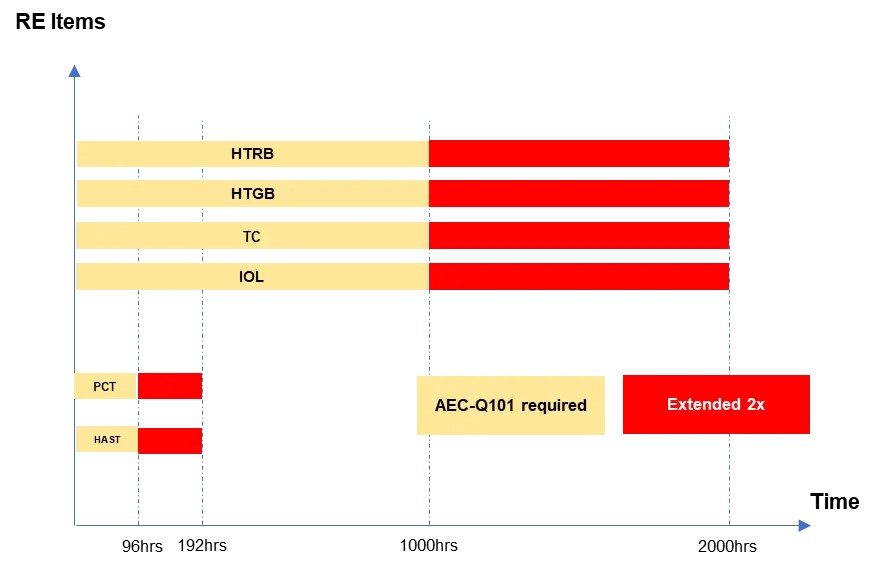

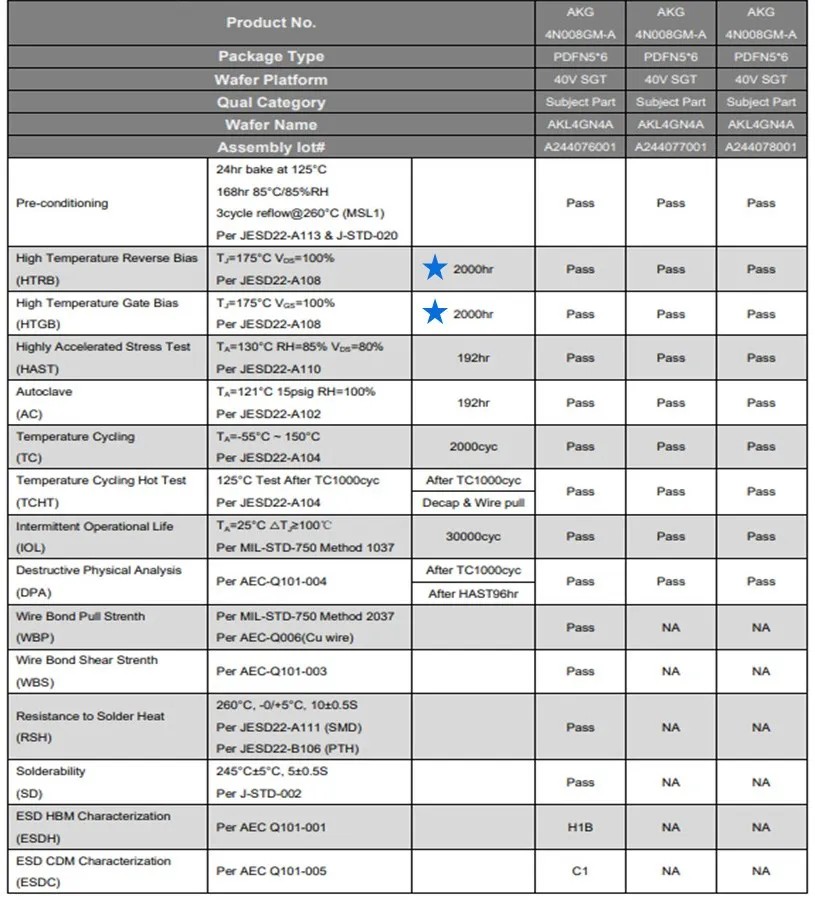

AEC-Q101 Reliability Summary (AKG4N008GM-A)
2倍可靠性
AKG4N008GM-A / AKG4N010GM-A / AKG4A058GM-A
AKS Product — AKG4N008GM-A
AKS Product — AKG4N010GM-A
AKS Product — AKG4A058GM-A
Competitor Product — Nxxxxxx406N
Competitor Product — Nxxxxxx426N
Applications
-
12V Automotive systems
-
Motor driving
-

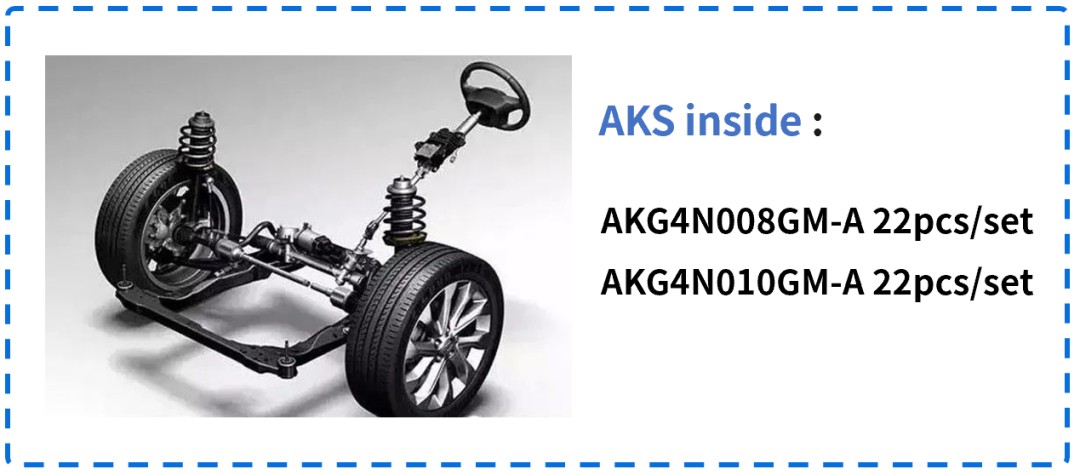

LV BMS (AKG4N008GM-A/AKG4N010GM-A)
-
PDC (AKG4N008GM-A/AKG4N010GM-A)
Application Instance of PDFN5x6 Package
-

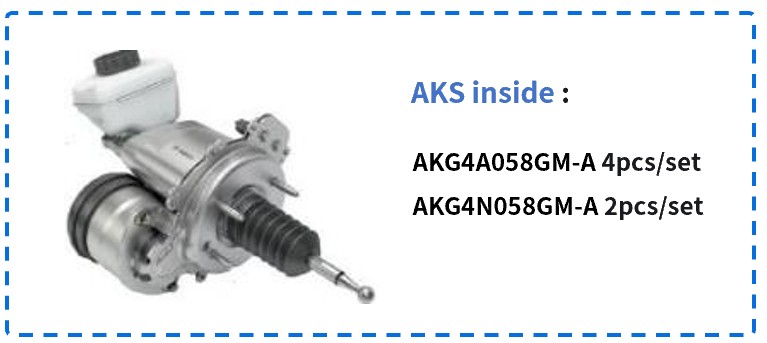

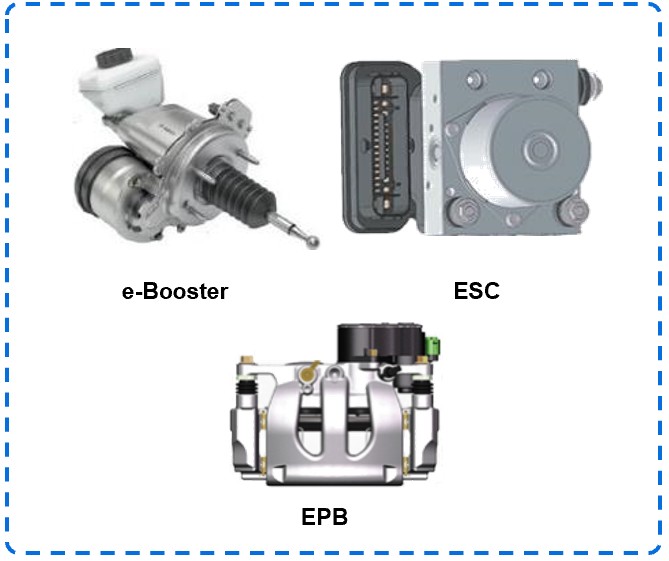

One-Box integrates eBooster、EPB、ESC and other brake functions
-
One-Box make the Brake system lighter, simplify the architecture, and save money
-
Extra ESC lite enables brake redundancy
Integrated Brake System

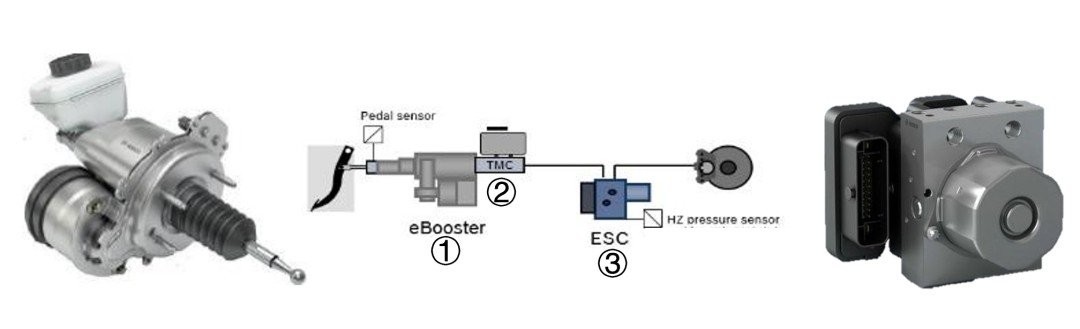

Two-Box EHB Solution — eBooster + ESC
-
BLDC motor and Pedal Provides Power
-
Pressure build-up with eBooster instead of ESC，fast response、short stopping distances and better NVH performance
-
eBooster + ESC Provide redundant brake backup for Autopilot

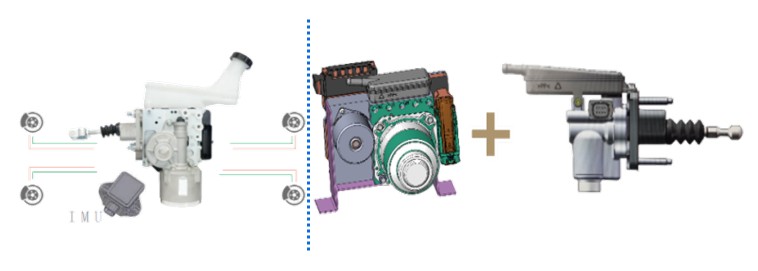

Two-Box Solution
Application Instance of PDFN5x6 Package

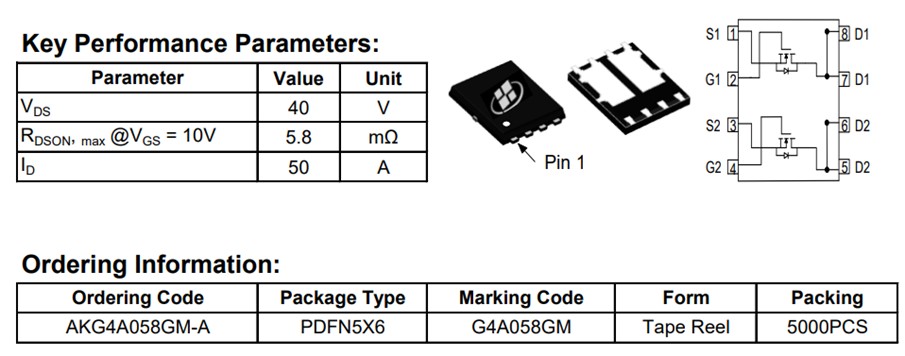

AKG4A058GM-A: 40V 5.8mohm Dual N-channel SGT MOSFET

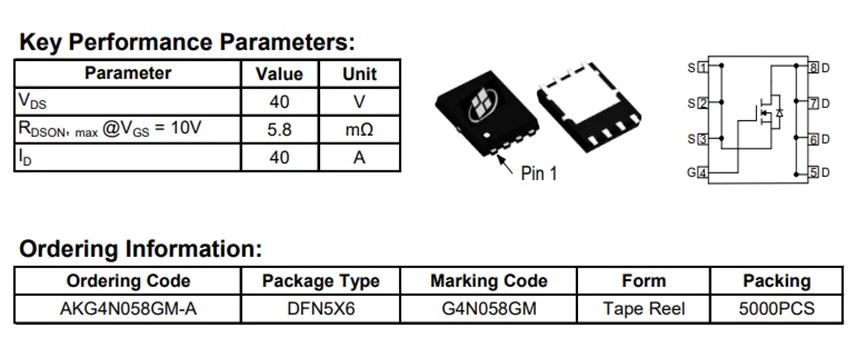

AKG4N058GM-A: 40V 5.8mohm N-channel SGT MOSFET
Application Instance of PDFN5x6 Package

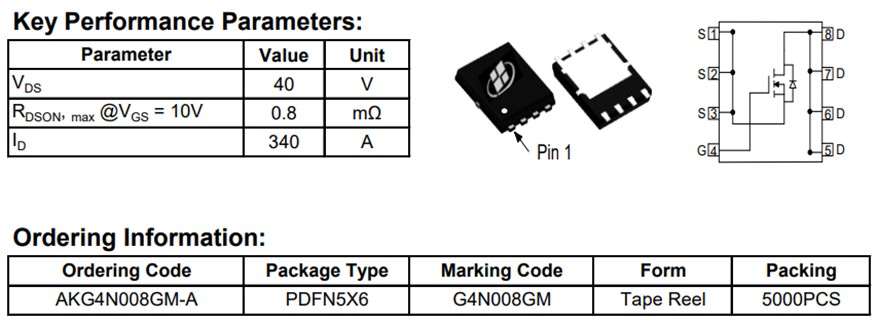

AKG4N008GM-A: 40V 0.8mohm N-channel SGT MOSFET

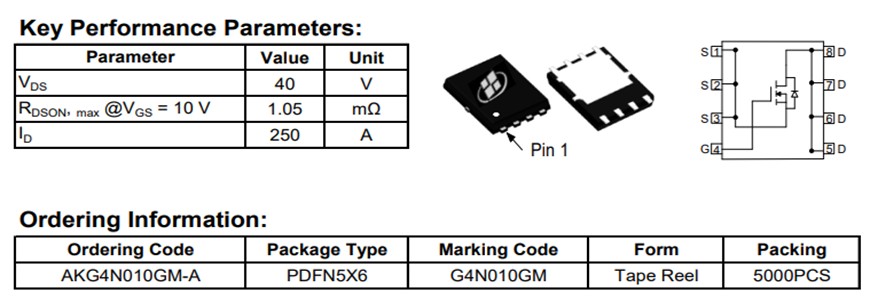

AKG4N010GM-A: 40V 1.05mohm N-channel SGT MOSFET
